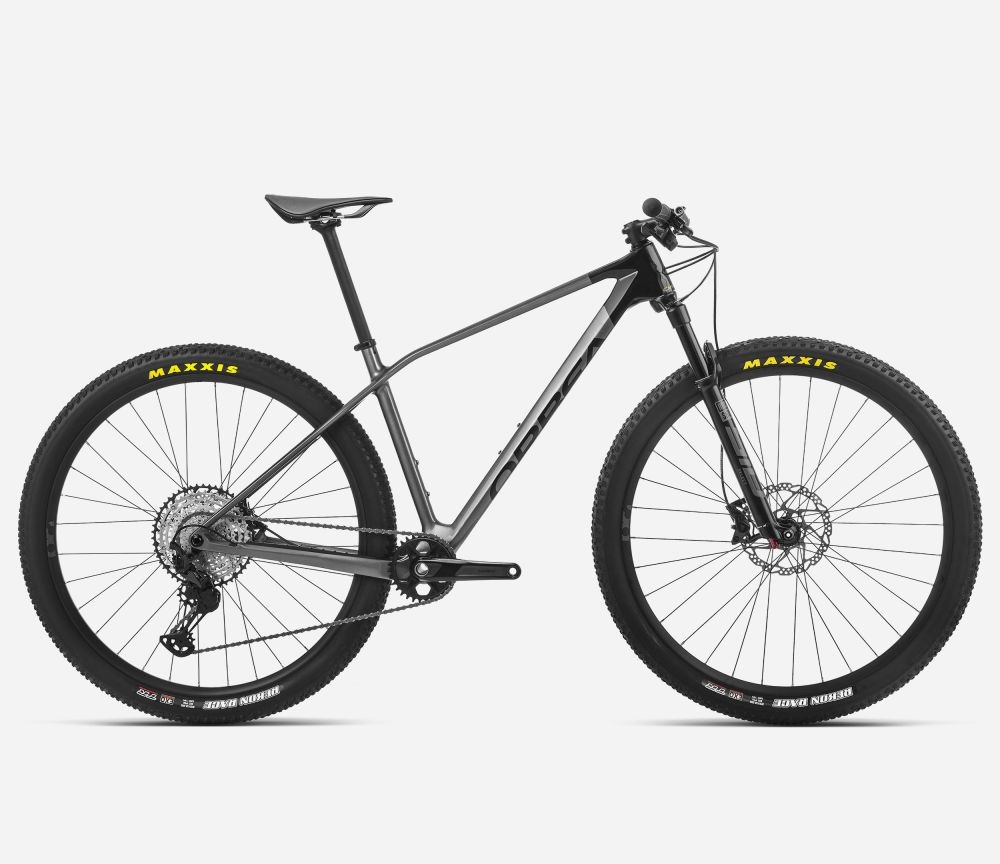

Orbea Alma Carbon OMR, Boost 12x148, PF BB, Internal cable routing.
FRAME
FORK
RockShox SID SL RL remote Q15X110 Boost DebonAir 100mm
HEADSET
FSA 1-1/8 - 1-1/2" Integrated
CRANKSET
Shimano MT611 32t
SHIFTERS
Shimano SLX M7100 I-Spec EV
CASSETTE
Shimano CS-M7100 10-51t 12-Speed
REAR DERAILLEUR
Shimano XT M8100 SGS Shadow Plus
CHAIN
Shimano M6100
CHAINGUIDE
HANDLEBAR
OC1 Flat 31.8mm 740mm
STEM
OC1 31.8mm interface -7º
BRAKES
Shimano M6100 Hydraulic Disc
BRAKES CONFIGURATION
WHEELS
Orbea OC1 25c Tubeless Ready
TYRES
Maxxis Rekon Race 2.35" 120 TPI Exo TLR
SEATPOST
OC2 forge head 27.2 Offset 0
SADDLE
Selle Italia Model X FecAlloy Rail 145x248mm
REMOTE LOCKOUT
Rock Shox OneLoc
|
|
S |
M |
L |
XL |
|

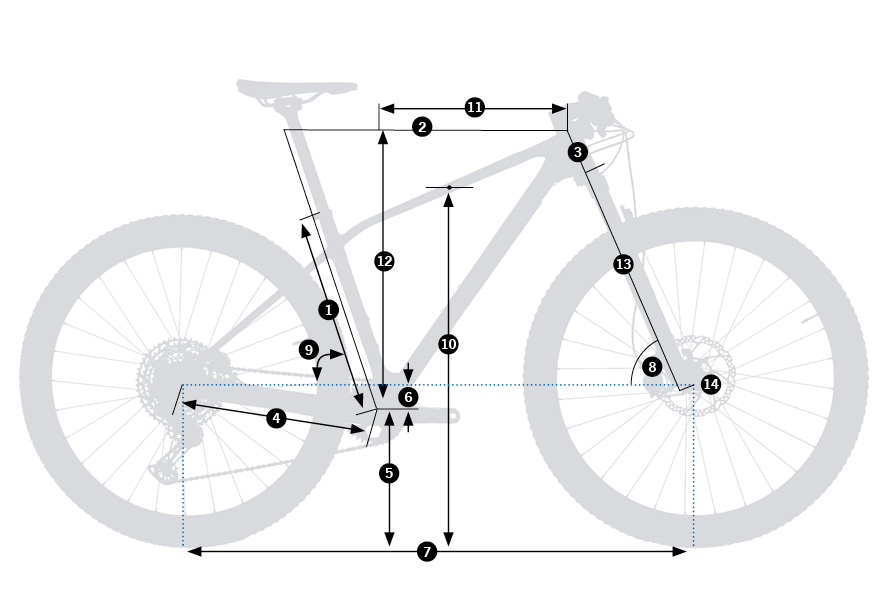

1 SEAT TUBE (C-T) |
400 |
445 |
483 |
533 |
|
2 TOP TUBE (EFF) |
559 |
593 |
618 |
647 |
|
3 HEAD TUBE |
95 |
100 |
110 |
125 |
|
4 CHAINSTAY |
430 |
430 |
430 |
430 |
|
5 BB HEIGHT |
309 |
309 |
309 |
309 |
|
SIZE |
CRANK |
STEM |
HANDLEBAR |
HEIGHT |
|
|
|
|
S |
170 |
60 |
740 |
155-170 |
|
|
|
|
M |
175 |
75 |
740 |
|
165-180 |
|
|
|
L |
175 |
75 |
740 |
|
|
178-190 |
|
|
XL |
175 |
90 |
740 |
|
|
|
185-198 |
